Overview

Introduction¶

Intel Vector Data Streaming Library is a zoo of solutions based on accelerators in the die of Intel 4th Xeon Scalable processor,code-named “Sapphire Rapids”. Intel provide a boundle of powerful accelerators for different scenarios as below table. Using this libary, users can achieve up to a 1.7x performance increase

Hardware and software being used in order to achieve the 1.7X performance claimed

Hardware Configurations¶

Name	Value
System	Intel Corporation EAGLESTREAM
Baseboard	Intel Corporation EAGLESTREAM
Chassis	Intel Corporation Rack Mount Chassis
CPU Model	Intel(R) Xeon(R) Platinum 8454H
Silicon Stepping, QDF	E3-Q17D
Microarchitecture	SPR
Sockets	2
Cores per Socket	32
Hyperthreading	Enabled
CPUs	128
Intel Turbo Boost	Enabled
Base Frequency	2.1GHz
All-core Maximum Frequency	3.4GHz
Maximum Frequency	2.7GHz
NUMA Nodes	2
Prefetchers	L2 HW, L2 Adj., DCU HW, DCU IP
PPINs	9f4a1e18ab770c59,8be507153d00daa1
Accelerators	QAT:8, DSA:8, IAA:0, DLB:8
Installed Memory	256GB (16x16GB 4800 MT/s [4800 MT/s])

System Configurations¶

Name	Value
Huge page size	2048 kB
Transparent Huge Pages	always
Automatic NUMA Balancing	Enabled
NIC	1x Ethernet Controller I225-LM, 2x Ethernet Controller E810-C for QSFP
Disk	1x 894.3G INTEL SSDSC2KG96
BIOS	EGSDCRB1.86B.0080.D21.2205151325
Microcode	0x890000c0
OS	CentOS Stream 8
Kernel	5.15.0-spr.bkc.pc.7.7.4.x86_64
TDP	270W
Power & Perf Policy	Performance
Frequency Governor	intel_pstate
Frequency Driver	performance
Max C-State	9

Special BIOS Configurations¶

Configuration Item	Recommended Value
EDKII Menu > Socket Configuration > Uncore Configuration > Uncore Dfx Configuration > Cache entries for non-atomics	120
EDKII Menu > Socket Configuration > Uncore Configuration > Uncore Dfx Configuration > Cache entries for atomics	8
EDKII Menu > Socket Configuration > Uncore Configuration > Uncore Dfx Configuration > CTAG entry avail mask	255
EDKII Menu-> \"Socket Configuration\" -> \"IIO Configuration\" -> \"Intel VT for directed IO (VT -d)\" Intel VT for directed IO	Enable
EDKII Menu-> \"Socket Configuration\" -> \"IIO Configuration\" -> \"PCI ENQCMD/ENQCMDS\"	Enable

Software Configurations¶

	Config1 (baseline)	Config2 (DSA acceleration)
Workload & version	mTCP stack -Master branch	mTCP stack -Master branch With DSA --idxd
Compiler	gcc (GCC) 8.5.0 20210514 (Red Hat 8.5.0-13)	gcc (GCC) 8.5.0 20210514 (Red Hat 8.5.0-13)
Libraries	ldd (GNU libc) 2.28 GNU ld version 2.36.1-3.el8 Python 3.6.8	ldd (GNU libc) 2.28 GNU ld version 2.36.1-3.el8 Python 3.6.8
Kernel	version: 5.13.0	version: 5.13.0
OS	CentOS Stream 8	CentOS Stream 8
DPDK	22.03	22.03
Accel config	NA	Version: 3.4.4
Client-Packetgen	21.050	21.050

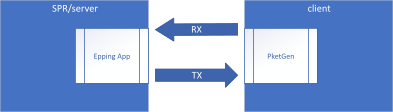

Setup Diagram

Setup diagram:

Linux Kernel Settings

Typically, CentOS 8 Stream OS is used for the PoC environment, because DSA is enabled.

Before compiling the kernel, check DSA related configurations are supported:

CONFIG_INTEL_IDXD=m

CONFIG_INTEL_IDXD_BUS=y

CONFIG_INTEL_IDXD_COMPAT=y

CONFIG_INTEL_IDXD_PERFMON=y

CONFIG_INTEL_IDXD_SVM=y

CONFIG_VFIO_MDEV_IDXD=m

CONFIG_IRQ_REMAP=y

CONFIG_INTEL_IOMMU=y

CONFIG_INTEL_IOMMU_SVM=y

CONFIG_IMS_MSI=y

CONFIG_IMS_MSI_ARRAY=y

CONFIG_IRQ_REMAP=y

CONFIG_PCI_ATS=y CONFIG_PCI_PRI=y

CONFIG_PCI_PASID=y

CONFIG_DMA_ENGINE=m

CONFIG_DMATEST=m

Software steps:¶

Download Source Code

git clone https://github.com/intel/Intel-Vector-Data-Streaming-Library.git

DSA Configuration

accel-config is a user-space tool for controlling and configuring DSA hardware devices.

How to install accel-config tool, please refer to https://github.com/intel/idxd-config.

These instructions were written using the tag >= ** 6bd68e68 **. Before compiling & installing, run:

git checkout 6bd68e68

#Below is the command to enable 1 DSA device, 4 engine and 1dedicated work queue:

cd Intel-Vector-Data-Streaming-Library/DSAZoo/dsa_userlib/config_dsa

#Configure with script tool
./setup_dsa.sh -d dsa0 -w 1 -m d -e 4

Build PoC

#Enter mtcp directory

cd Intel-Vector-Data-Streaming-Library/DSAZoo

cd example\_mtcp

#Run script pre_dpdk2203.sh to git clone dpdk v22.03, and then build
and install it

./pre_dpdk2203.sh ~dpdk2203

#Run script pre_compile.sh to prepare the environment before you
building this project:

./pre_compile.sh

#Set env

export RTE_SDK=`echo $PWD`/dpdk

export
PKG_CONFIG_PATH=${PKG_CONFIG_PATH}:~/dpdk2203/lib64/pkgconfig

export LD_LIBRARY_PATH=${LD_LIBRARY_PATH}:~/dpdk2203/lib64
export LD_LIBRARY_PATH=${LD_LIBRARY_PATH}:./

#Run make command to build the project.

make

DPDK environment configuration

Build and install igb_uio.ko

git clone http://dpdk.org/git/dpdk-kmods

cd dpdk-kmods/linux/igb_uio/ make

modprobe uio

insmod igb_uio.ko

#Setup hugepage mappings:

mkdir -p /mnt/huge

mount -t hugetlbfs nodev /mnt/huge

#Set 4x1G hugepages each numa node

echo 4 > /sys/devices/system/node/node0/hugepages/hugepages-1048576kB/nr_hugepages

echo 4 > /sys/devices/system/node/node1/hugepages/hugepages-1048576kB/nr_hugepages

#Bind nic to uio

#Down nic interface in kernel driver:

ifconfig ensXX down

#Bind nic to uio, RTE_SDK is dpdk22.03 install path, PCI_PATH is nic PCI Function Address ${RTE_SDK}/bin/dpdk-devbind.py -b igb_uio $PCI_PATH

Packet receiver server setup steps

For details, please refer to https://pktgen-dpdk.readthedocs.io/en/latest/getting_started.html

1. Build and install DPDK to your packet receiver machine

2. Clone pktgen-dpdk repo and build it

git clone http://dpdk.org/git/apps/pktgen-dpdk

Use make command to build it. Please refer tohttps://pktgen-dpdk.readthedocs.io/en/latest/getting_started.ht dpdk-and-pktgen

3. Set DPDK, allocate huge pages, bind NIC to DPDK.

4. Launch pktgen-dpdk tool, like

./usr/local/bin/pktgen -c 0x3 -n 2 -- -P -m \"1.0\"

5. Enter the following command in pktgen cmdline to send packets:

#This mac address is SPR NIC mac address

set 0 dst mac 40:a6:b7:67:19:f0

set 0 proto tcp

set 0 size 5000

set 0 rate 0.01

start 0

#If you want pause, you can enter:

stop 0

Performance Measurement

You can observe PPS and bandwidth from Pkts/s and MBits/s in PKTGEN Console.

mTCP APP Configuration File

cd Intel-Vector-Data-Streaming-Library/DSAZoo/example\_mtcp/apps/example

vim epping.conf

#Modify port to your NIC PCIe number, for example:

port = 0000:29:00.0 (your NIC PCIe number)

Implementation and performance of CPU & DSA async mode Benchmark with CPU

cd Intel-Vector-Data-Streaming-Library/DSAZoo/example\_mtcp/apps/example

# 4K

./epping -f epping.conf -l 4k -n 32768

# 8K

./epping -f epping.conf -l 8k -n 16384

# 32K

./epping -f epping.conf -l 32k -n 4096

# 256K

./epping -f epping.conf -l 256k -n 512

# 1M

./epping -f epping.conf -l 1m -n 128

# 2M

./epping -f epping.conf -l 2m -n 64

Benchmark with DSA async mode

cd Intel-Vector-Data-Streaming-Library/DSAZoo/example\_mtcp/apps/example

# 4K

./epping -f epping.conf -l 4k -n 32768 -d

# 8K

./epping -f epping.conf -l 8k -n 16384 -d

# 32K

./epping -f epping.conf -l 32k -n 4096 -d

# 256K

./epping -f epping.conf -l 256k -n 512 -d

Implementation and performance of CPU & DSA unpacking

Benchmark with CPU unpacking

# unpacking to 64 Bytes packet

./epping -f epping.conf -d -m 64

# unpacking to 128 Bytes packet

./epping -f epping.conf -d -m 128

# unpacking to 256 Bytes packet

./epping -f epping.conf -d -m 256

# unpacking to 512 Bytes packet

./epping -f epping.conf -d -m 512

# unpacking to 1460 Bytes packet

./epping -f epping.conf -d -m 1460

# unpacking to 4096 Bytes packet

./epping -f epping.conf -d -m 4096

# unpacking to 8192 Bytes packet

./epping -f epping.conf -d -m 8192

**Benchmark with DSA unpacking**

# unpacking to 64 Bytes packet

./epping -f epping.conf -du -m 64

# unpacking to 128 Bytes packet

./epping -f epping.conf -du -m 128

# unpacking to 256 Bytes packet

./epping -f epping.conf -du -m 256

# unpacking to 512 Bytes packet

./epping -f epping.conf -du -m 512

# unpacking to 1024 Bytes packet

./epping -f epping.conf -du -m 1024

Performance Claim:¶

Throughput up to 1.7x improvement when using DSA accelerator to offload CPU vs software running on cores on mTCP workload with sending data size 256KB (or bigger).

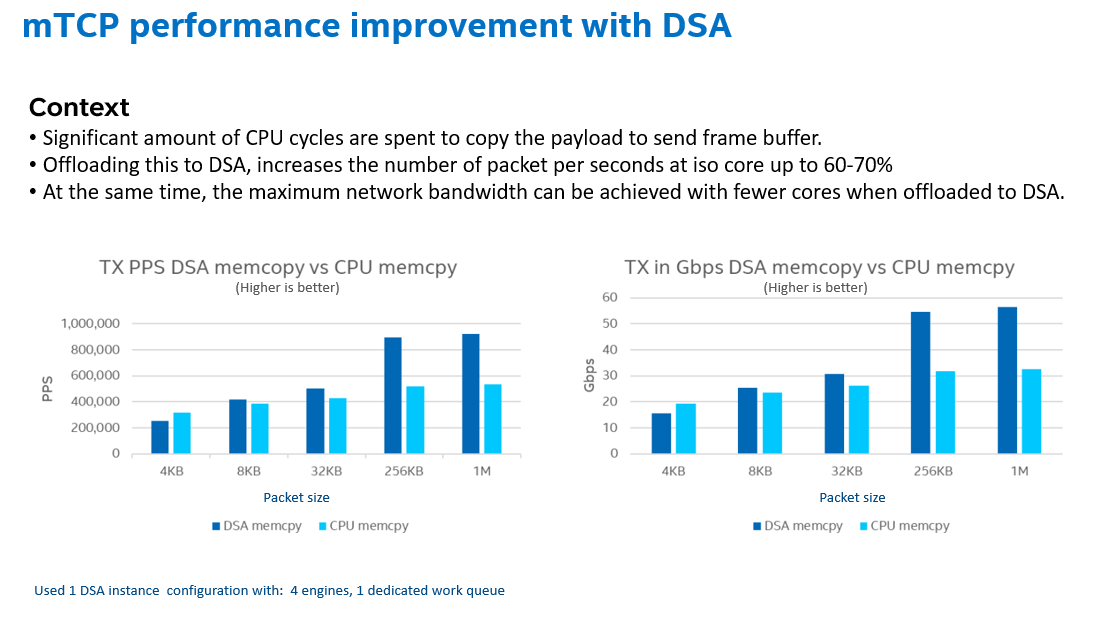

mTCP performance improvement with DSA

Test by Intel as of 22nd Jun 2022.

Performance varies by use, configuration and other factors. Learn more at www.Intel.com/PerformanceIndex.

Performance results are based on testing as of dates shown in configurations and may not reflect all publicly available updates. See backup for configuration details. No product or component can be absolutely secure.

Intel disclaims all express and implied warranties, including without limitation, the implied warranties of merchantability, fitness for a particular purpose, and non-infringement, as well as any warranty arising from course of performance, course of dealing, or usage in trade.

Intel technologies may require enabled hardware, software or service activation.

Intel does not control or audit third-party data. You should consult other sources to evaluate accuracy.

The products described may contain design defects or errors known as errata which may cause the product to deviate from published specifications. Current characterized errata are available on request.
