HAProxy with Intel® QuickAssist Technology (Intel® QAT) Tuning Guide¶
Introduction¶
This guide is for users who are already familiar with HAProxy and Intel® QuickAssist Technology (Intel® QAT). It provides recommendations for configuring hardware and software that will provide the best performance in most situations. However, please note that we rely on the users to carefully consider these settings for their specific scenarios.
HAProxy is an open-source software load balancer and reliable reverse proxy, continuously optimized to run on Intel® Xeon® processors.
Intel® QAT is one of the built-in accelerators and is designed for speeding up cryptography including private key protection, and data decompression. It offloads cryptography functions from the processor, the accelerator helps systems serve a larger number of clients.
Intel® Advanced Vector Extensions 512 (Intel® AVX-512) is the latest Intel architecture processor vector instruction set, with up to two fused multiply add (FMA) units and other optimizations to help accelerate the performance of demanding computational tasks. These vectorized instructions used in software acceleration libraries: Intel® IPP Cryptography and Intel® Multi-Buffer Crypto for IPsec with Intel® QAT Engine for OpenSSL, provide the computational power for HAProxy.
System Configuration¶
Hardware¶
The configuration described in this article is based on 4th or 5th Gen Intel® Xeon® processor hardware. The server platform, memory, hard drives, and network interface cards can be determined according to your usage requirements.
4th Gen Intel® Xeon® processor hardware | Hardware | Model | |----------------------------------|------------------------------------| |System|Intel Corporation M50FCP2SBSTD| |Baseboard|Intel Corporation M50FCP2SBSTD| |CPU Model|Intel(R) Xeon(R) Platinum 8480+| |BIOS|SE5C7411.86B.9525.D18.2303071632| |Memory|512GB (16x32GB DDR5 4800 MT/s [4800 MT/s])| |Storage/Disks|1x 894.3G Micron_5300_MTFD| |NIC|4x Ethernet Controller E810-C for QSFP (1 port for HAProxy Server)|
5th Gen Intel® Xeon® processor hardware | Hardware | Model | |----------------------------------|------------------------------------| |System|Intel Corporation ArcherCity| |Baseboard|Intel Corporation ArcherCity| |CPU Model|INTEL(R) XEON(R) PLATINUM 8592+| |BIOS|EGSDCRB1.86B.0105.D74.2308261927| |Memory|512GB (16x32GB DDR5 5600 MT/s [5600 MT/s])| |Storage/Disks|1x 465.8G Hitachi HTS72505| |NIC|4x Ethernet Controller E810-C for QSFP (1 port for HAProxy Server)|
Software¶
| Software | Version |
|---|---|
| Operating System | Ubuntu 22.04 LTS |
| HAProxy | v2.8.0 |
| WRK | 4.2.0 |
| Nginx | 1.25.1 |
| OpenSSL | 1.1.1u |
| TLS | 1.3 |
| QAT_Engine | v1.2.0 |
| IPP Crypto | ippcp_2021.7.1 |
| IPSec MB | v1.3 |
| QAT Hardware Driver | QAT20.L.1.0.50-00003 (for HW Version 2.0) / QAT.L.4.19.0-00005 (for HW Version 1.X) |
| Compiler | gcc version 11.4.0 (Ubuntu 11.4.0-1ubuntu1~22.04) |
| Cipher Suite | TLS_AES_256_GCM_SHA384 |
| Certificate | RSA2048 |
| grub command line | BOOT_IMAGE=/vmlinuz-5.15.0-73-generic root=/dev/mapper/ubuntu--vg-ubuntu--lv ro default_hugepagesz=2M hugepagesz=2M hugepages=4096 |
Hardware Tuning¶
BIOS Settings¶
Begin by resetting your BIOS to default setting, then follow the suggestions below for changes to the default,
| Configuration Item | Recommended Value |
|---|---|
| Intel(R) VT for Directed I/O | Enable |
| SncEn | Disable |
| Hyper Threading | Enable |
| Intel(R) Turbo Boost Technology | Enable |
Software Tuning¶
Software configuration tuning is essential. From the operating system to HAProxy configuration settings, they are all designed for general purpose applications and default settings are almost never tuned for best performance.
Test Architecture and Scenarios¶

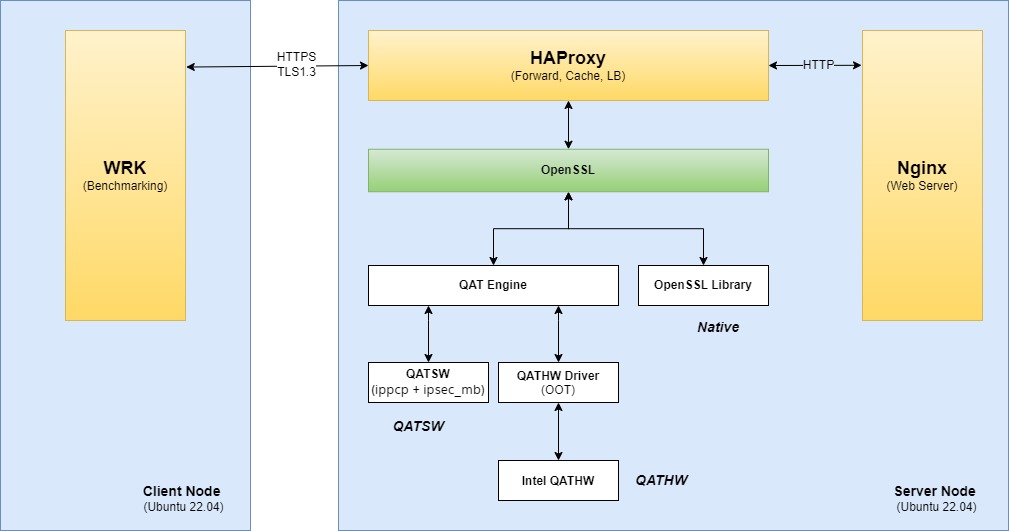

Test Architecture¶
Scenarios¶
- Native Mode: HAProxy uses native OpenSSL crypto stack to encrypt/decrypt TLS traffic.
- QATSW Mode: Crypto operation will be set to optimized software path(IPP Crypto & IPSet MB Library) by Intel® QAT Engine for OpenSSL.
- QATHW Mode: Crypto operation will be offloaded to Intel® QAT hardware accelerator by Intel® QAT Engine through device driver.
Linux Kernel Optimization Settings¶
Use CommsPowerManagement to set core and uncore frequency and cpu performance governer according to your testing scenario. Below is an example to set core and oncore frequncy to 1.9GHz and the performance mode,
Install Environment¶
Note: Before this step, please make sure you have configured environment variable "https_proxy", "http_proxy" and "no_proxy" correctly.
Copy source code of this workload to SUTs, run install.sh to install environment.
On HAProxy server,
This script will check and install necessary components, such as OpenSSL, HAProxy, QAT Driver, etc.On WRK client,
Start Testing¶
Config HAProxy Server¶
config.sh is used to configure HAProxy server, this is an necessary step before testing. Execute below command to show usage and command examples,
config.sh to configure HAProxy server multiple times.
For example, after you configured Native mode, you can also use this script with corresponding parameters to configure QATSW or QATHW mode.
Start Testing on WRK Client¶
wrk is a modern HTTP benchmarking tool which can be used to measure RPS(requests/second), throughput and latency of HAProxy.
Below are command options,
-c, --connections: total number of HTTP connections to keep open with
each thread handling N = connections/threads
-d, --duration: duration of the test, e.g. 2s, 2m, 2h
-t, --threads: total number of threads to use
-s, --script: LuaJIT script, see SCRIPTING
-H, --header: HTTP header to add to request, e.g. "User-Agent: wrk"
--latency: print detailed latency statistics
--timeout: record a timeout if a response is not received within
this amount of time.
taskset -c 0-15 wrk -t 16 -c 1600 -d 30s --timeout 30s --latency https://<HAProxy_Server_IP>:<HAProxy_Port>/handshake
taskset -c 0-15 wrk -t 16 -c 1600 -d 30s --timeout 30s --latency https://<HAProxy_Server_IP>:<HAProxy_Port>/data_1MB
Uninstall HAProxy Testing Environment¶
Below command can be used to uninstall HAProxy testing environment,
Typical Testing Scenario Examples¶
Example1: Benchmark HAProxy 8C16T QATHW Handhsake Performance¶
Configure HAProxy Server
Run below command on HAProxy server machine,
./config.sh --mode qathw --haproxy-cores 65-72,193-200 --haproxy-nbthread 16 --nginx-cores 96-103,224-231 --nginx-workers 16 --haproxy-http-keep-alive false --bind-irq-devices ens801f0 -y
Run below command on WRK client machine,
taskset -c 0-15 wrk -t 16 -c 1600 -d 30s --timeout 30s --latency https://192.168.39.39:9000/handshake
Running 30s test @ https://192.168.39.39:9000/handshake
16 threads and 1600 connections
Thread Stats Avg Stdev Max +/- Stdev
Latency 2.59ms 1.42ms 19.83ms 62.06%
Req/Sec 1.04k 76.40 2.36k 72.79%
Latency Distribution
50% 2.56ms
75% 3.68ms
90% 4.47ms
99% 5.85ms
498163 requests in 30.08s, 120.67MB read
Requests/sec: 16559.14
Transfer/sec: 4.01MB
Requests/sec, higher is better.
Note: Above output is only used to show how to capture handshake result, not represent the official performance data.
Example2: Benchmark HAProxy 4C8T QATSW Throughput Performance¶
Configure HAProxy Server
Run below command on HAProxy server machine,
./config.sh --mode qatsw --haproxy-cores 65-68,193-196 --haproxy-nbthread 8 --nginx-cores 96-103,224-231 --nginx-workers 16 --haproxy-http-keep-alive true --bind-irq-devices ens801f0 -y
Run below command on WRK client machine, wrk will produce similar output:
Running 30s test @ https://192.168.39.39:9000/data_1MB
8 threads and 400 connections
Thread Stats Avg Stdev Max +/- Stdev
Latency 65.60ms 15.46ms 392.38ms 86.97%
Req/Sec 760.96 53.35 0.97k 67.83%
Latency Distribution
50% 62.71ms
75% 69.78ms
90% 89.04ms
99% 96.60ms
181769 requests in 30.02s, 177.71GB read
Requests/sec: 6054.43
Transfer/sec: 5.92GB
Transfer/sec as GBps, higher is better.
To convert GBps to Gbps, you need to multiply the output with 1.024^3*8 (For example: 5.92GBps = 5.92 * 1.024^3 * 8 = 50.85Gbps)
Note: Above output is only used to show how to capture throughput result, not represent the official performance data.
Supported file size for throughput case: data_1KB,data_2KB, data_4KB, data_10KB, data_100KB, data_512KB, data_1MB, data_2MB, data_4MB, data_10MB.
Related Tools and Information¶
htopandperfcan be used to monitor server resources usage and function call stacks information,emoncan be used to analyze CPU runtime metric data.adf_ctlis the QAT hardware accelerator management interface provided by QAT driver. Usage of adf_ctl:adf_ctl [qat_dev<N>] status- to print device(s) status; `adf_ctl [-c|--config] [qat_dev] [up | down | restart | reset] - to bring up or down device(s);
Conclusion¶
This article describes how to install and configure HAProxy with Intel® QAT testing environment and how to obtain throughput, RPS(Request per Second) and latency on Native/QATSW/QATHW scenarios.
